You know that musty, damp smell that seems to creep up from downstairs in your North Carolina home? It’s a common problem for homeowners in Wake Forest, NC, and nearby areas with a crawl space. You might be ignoring it, but that earthy odor is a big warning sign. What you’re smelling is the result of excess moisture, and a crawl space vapor barrier might be the solution you need. But before you jump in, it’s smart to understand what a crawl space vapor barrier does and, more importantly, what it doesn’t do.
Understanding Crawl Space Vapor Barriers
A crawl space vapor barrier is a heavy-duty sheet of plastic that covers the dirt or concrete floor of your crawl space. Its one job is to stop water vapor from the soil from rising up and turning your crawl space into a damp, humid mess. Think of it as a raincoat for the ground under your home. This moisture protection is all about controlling moisture at its source within the space.
These space vapor barriers are often called vapor retarders because they slow down the movement of moisture. The material’s effectiveness is measured in “perms,” but the main thing to know is that a good barrier has a very low perm rating. This means very little moisture gets through.
Choosing the Right Vapor Barrier Material
Not all vapor barriers are created equal, and the right vapor barrier material depends on your specific crawl space conditions. The thickness of the material is measured in mils. One mil is one-thousandth of an inch. A basic 6-mil vapor barrier may be sufficient for a clean area with minimal foot traffic, but a thicker material is often a better investment.
A 12-mil crawl space vapor barrier offers more durability and better puncture resistance. For crawl spaces used for storage or those with rough, rocky ground, a 20-mil reinforced crawl space liner is a top choice. These heavy-duty liners are extremely tough and provide the best barrier protection, creating a truly durable crawl space.
Look for a reinforced barrier made from 100% virgin polyethylene. This material is stronger and more consistent than plastics made with recycled content.
Why Crawl Space Moisture Is a Bigger Deal Than You Think
That little bit of dampness isn’t harmless. Over time, it can cause some serious headaches for you and your home. The biggest issue is that moisture leads to wood rot. The beams and joists that hold up your floors are sitting right above that damp air.
When they get wet, they soften and weaken. This can seriously compromise the structural integrity of your house. This damp environment is also the perfect breeding ground for mold and mildew.
A surprising amount of the air in your crawl space eventually makes its way into your living areas. So, if your crawl space has mold, you’re breathing in those spores. Beyond health concerns, a humid crawl space makes your entire home feel muggy, forcing your HVAC system to work harder and driving up energy bills.
Another hidden danger is soil gas. Gases like radon can seep up from the ground into your home, and a properly sealed moisture barrier is a critical part of soil gas mitigation. This extra layer of defense helps keep your indoor air healthier.
Vapor Barrier vs. Encapsulation: Aren’t They the Same Thing?
This is where things can get a little confusing, but the difference is simple. A standard vapor barrier installation involves laying the plastic sheeting over the dirt floor. It’s a good first step, but it’s not a complete fix for serious space moisture issues.

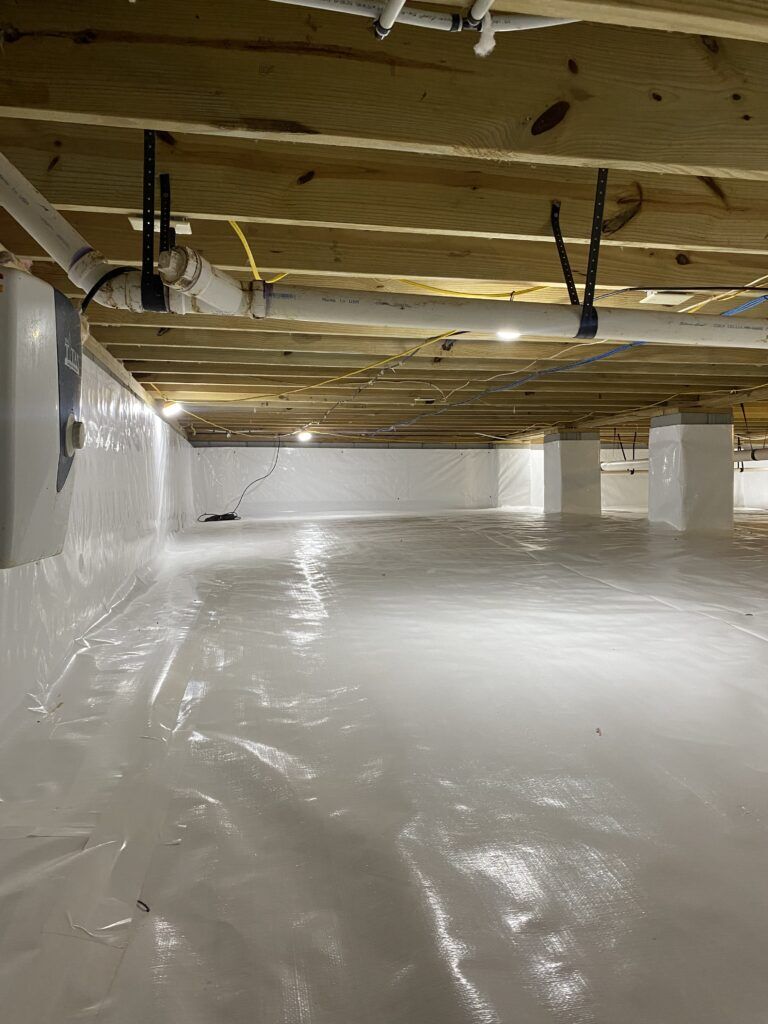

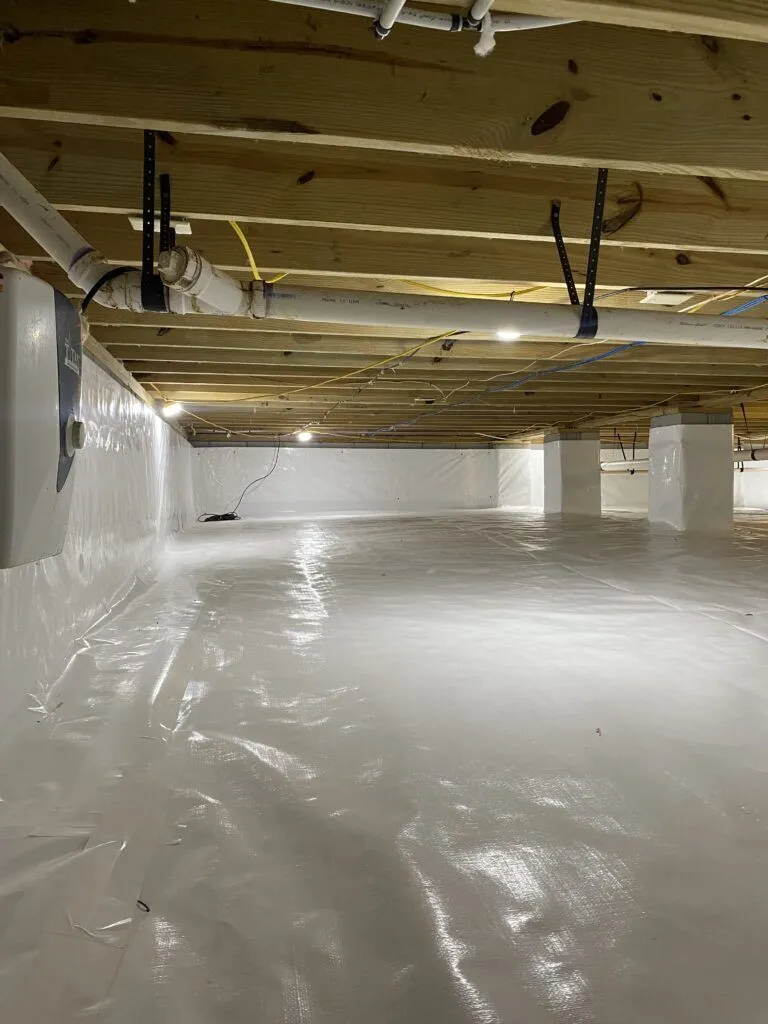

Crawl space encapsulation is the whole package. Encapsulation uses a heavy-duty crawl space vapor barrier to completely seal the entire space. The liner goes across the floor, up the foundation walls, and around any support piers. The seams are then sealed with special sealing tape, like butyl tape, to create a continuous, airtight barrier.
This process turns a vented, open crawl space into a non-vented, closed crawl space. Proper crawl space ventilation changes from letting outside air in to managing the air inside the newly sealed area. Often, this includes adding rigid foam insulation to the walls and installing a dehumidifier. The goal is to create a great crawl space that is clean, dry, and conditioned.
| Feature | Standard Vapor Barrier | Crawl Space Encapsulation |
|---|---|---|
| Coverage | Covers only the ground floor. | Covers the floor, foundation walls, and piers. |
| Seams | Overlapped but generally not sealed. | Completely sealed with specialized sealing tape. |
| Vents | Usually left open. | Sealed to create a closed crawl space. |
| Air Quality | Reduces ground moisture evaporation. | Actively controls humidity and stops soil gas. |
| Additional Steps | Typically none. | Often includes a dehumidifier and insulation. |
Do You Even Need One?
Not every home does. Your need for a crawl space vapor barrier depends on your climate and your home’s construction. But there are a few clear signs that you should look into getting one. If you’re constantly fighting high humidity inside your home, a moisture barrier can make a huge difference.
If you’ve noticed mold growing on items stored in your crawl space or on the wooden structures, that’s another major red flag. Water beading on your ductwork or pipes is also a classic sign of too much condensation and humidity. Other indicators include soft or sagging floors, lingering musty odors, and increased pest activity, as many insects are drawn to damp areas. If any of these sound familiar, a reinforced vapor barrier is likely a good idea.
Stop. Before You Install a Vapor Barrier, Check These Things First
Installing a crawl space vapor barrier on top of a major water problem is like putting a bandage on a broken arm. It won’t solve the root cause. A vapor barrier is designed to stop moisture vapor from the soil, not streams of liquid water from other sources. Before you spend a dime on a barrier, you need to manage drainage.
Here’s a quick checklist:
- Look at your yard’s slope. The ground around your foundation should slope away from the house. If it slopes inward, rainwater will pool against your foundation and find its way inside your crawl space.
- Clean your gutters. Clogged gutters are a huge source of foundation water problems. Water spills over the sides and soaks the ground right next to your home.
- Add downspout extensions. Make sure your downspouts are carrying water at least 5 or 6 feet away from the foundation. Extensions are cheap and easy to install.
- Consider a drainage system. For serious groundwater issues, you might need a proper system like a French drain or an interior drain connected to a sump pump. These systems actively collect and pump water away from your foundation. Fixing these larger drainage issues first is critical.
Some of these are easy do-it-yourself projects, but for complex issues, you may need technical support from a drainage professional.
Final Takeaways
A damp crawl space is more than just an inconvenience. It affects both your health and the stability of your home. Installing a crawl space vapor barrier is a powerful step toward controlling that ground moisture. It’s a solution for many crawl spaces, ranging from those with dirt floors to those with other surfaces. However, remember that it’s part of a larger picture.
For it to truly work, you must first address any major water intrusion issues. By addressing drainage issues and selecting the appropriate vapor barrier, you can prevent moisture. This helps create a healthier, more stable, and more energy-efficient home from the ground up.
